If your dryer or air conditioner ever trips the breaker, you know what happens. Power demand can push a circuit too far.
Breakers exist to prevent that. They interrupt the flow of electricity when a circuit draws more current than it should. But not all breakers work the same way.
A single-pole breaker controls one hot wire and delivers 120 volts. A double-pole breaker controls two hot wires and delivers 240 volts for larger appliances. Knowing which is which matters for safety, performance, and electrical code compliance.
This guide explains how each type works, how to identify them, and when to use one over the other.
Quick Takeaways
- •
Single-pole breakers supply 120 volts through one hot wire and are used for lights, outlets, and small appliances. - •
Double-pole breakers supply 240 volts through two connected hot wires for dryers, stoves, and HVAC systems. - •
Single-pole breakers use one slot in the panel; double-pole breakers occupy two adjacent slots. - •
Double-pole breakers have a shared trip mechanism that shuts off both legs simultaneously for safety. - •
Always match breaker type to appliance voltage and amperage — installation should be handled by a licensed electrician.
What Is a Single Pole Breaker?
A single-pole breaker supplies 120 volts using one hot wire and one neutral wire. It’s narrow, has a single switch, and takes up one slot in the breaker panel. Inside your electrical system, it connects to one phase of your home’s power supply.
Single-pole breakers handle most of your home’s daily needs — lighting, outlets, TVs, computers, and small appliances. They typically carry between 15 and 30 amps.
If a circuit draws too much power or a short circuit occurs, the breaker trips to stop current flow. This protects the load distribution and prevents wire overheating or electrical fires.
Simply put, single-pole breakers handle your 120-volt everyday circuits safely and efficiently.
What Is a Double Pole Breaker?
A double-pole breaker delivers 240 volts using two connected hot wires and a shared internal trip. It’s wider than a single-pole breaker and occupies two adjacent slots in the electrical panel.
These breakers are used for high-demand appliances like water heaters, dryers, stoves, HVAC systems, and EV chargers. They typically range from 20 to 60 amps or higher, depending on the load.
When one leg of a double-pole circuit overloads, the breaker trips both sides together. This prevents a dangerous situation where one hot wire stays live while the other shuts off.
In short: double-pole breakers power your heavy-duty appliances and protect both legs of a 240-volt circuit at the same time.
Key Differences Between Single and Double Pole Breakers
| Feature | Single-Pole Breaker | Double-Pole Breaker |
|---|---|---|
| Voltage | 120 volts | 240 volts |
| Hot Wires | One | Two |
| Panel Slots Used | One | Two adjacent |
| Common Trip | No | Yes (both trip together) |
| Applications | Lights, outlets, small appliances | Dryers, HVAC, ovens, water heaters |
| Amperage Range | 15–30 A | 20–60 A+ |
| Safety Purpose | Protects single circuit | Protects higher-voltage equipment |
Why Choosing the Right Breaker Matters
A properly sized and installed breaker keeps your electrical system safe and balanced. The right type also protects appliances from damage.
Prevents Overloads and Equipment Failure
Installing the wrong breaker means the wrong voltage protection. That mismatch can cause overheating or premature wear on wiring and connected devices.
Maintains Electrical Safety and Code Compliance
The National Electrical Code (NEC) requires each breaker to match the wire size, circuit voltage, and load. Double-pole breakers must trip both legs simultaneously to prevent live wire exposure.
Supports Energy Efficiency and System Longevity
Balanced, properly protected circuits run cooler and use power more efficiently. Correct breaker sizing keeps voltage steady, reducing stress on motors and electronics.

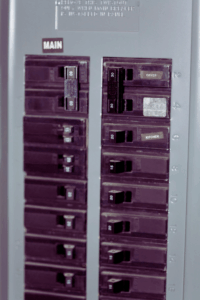

How to Identify Your Breaker Type in the Panel
If you’re curious what type of breakers your home uses, you can check safely — without touching live wires.
- Single-pole breaker: one narrow switch that occupies a single slot.
- Double-pole breaker: a wider switch linking two side-by-side slots.
- Check labels inside your panel door — most are marked with their voltage rating.
- For appliances, read the voltage label (120 V or 240 V) on the unit or power cord.
If you’re unsure, stop there. Never remove the panel cover or inspect wiring unless you’re licensed to do so.
When to Use Each Type
Use single-pole breakers for standard 120-volt circuits like lights, outlets, and small devices.
Use double-pole breakers for large 240-volt appliances — air conditioners, dryers, ovens, water heaters, or EV chargers.
If you’re remodeling, upgrading appliances, or installing new equipment that draws high current, have your panel inspected. Make sure your breaker amperage rating, wire gauge, and load capacity align correctly before you power up.
Common Signs You Might Have the Wrong Breaker Type
If your panel isn’t configured properly, you’ll likely notice symptoms such as:
- An appliance runs poorly or trips the breaker often.
- The panel shows mixed breakers, but the wiring doesn’t match.
- The breaker feels warm or emits a buzzing sound.
- Utility bills spike unexpectedly.
- You remodeled or added a heavy load without updating breakers.
These signs often point to imbalanced loads or mismatched breaker sizing. Both can increase wear and reduce the lifespan of your electrical system.
FAQ: Difference Between Single and Double Pole Breakers
What’s the main difference between single and double pole breakers?
A single-pole breaker provides 120 volts using one hot wire. A double-pole breaker provides 240 volts using two hot wires for higher power demand.
Can I use a single-pole breaker for a 240 V appliance?
No. It’s unsafe and violates electrical code because it leaves part of the circuit energized.
How many panel slots does a double-pole breaker take?
Two adjacent slots that connect to both legs of your power supply.
Why do double-pole breakers trip both sides at once?
They have a shared trip mechanism that disconnects both live wires for safety during overloads.
What appliances use double-pole breakers?
Dryers, ovens, water heaters, air conditioners, and EV chargers.
When should I replace or upgrade my breaker?
If it trips frequently, feels hot, or when installing new high-voltage equipment like a heat pump or electric range.
Keep Your Electrical Panel Safe and Balanced
Knowing the difference between single and double pole breakers keeps your home safe, compliant, and energy-efficient. The type of breaker you use directly affects appliance performance, power distribution, and system longevity.
